GeekVape Z 25mm BF RDA

GeekVape Z 25mm BF RDA

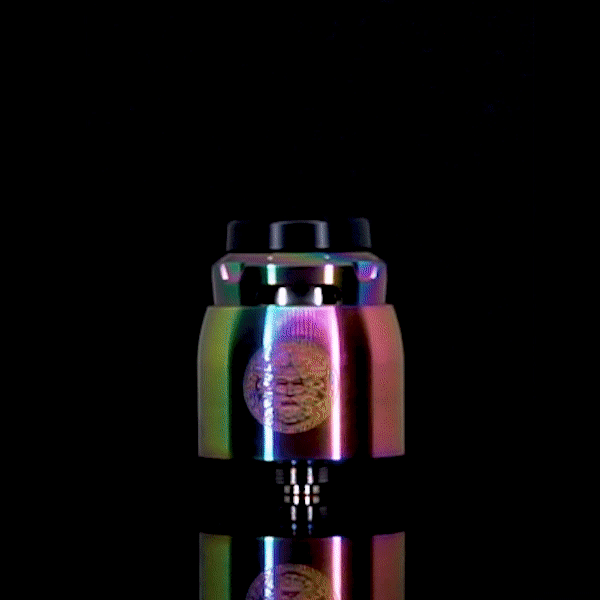

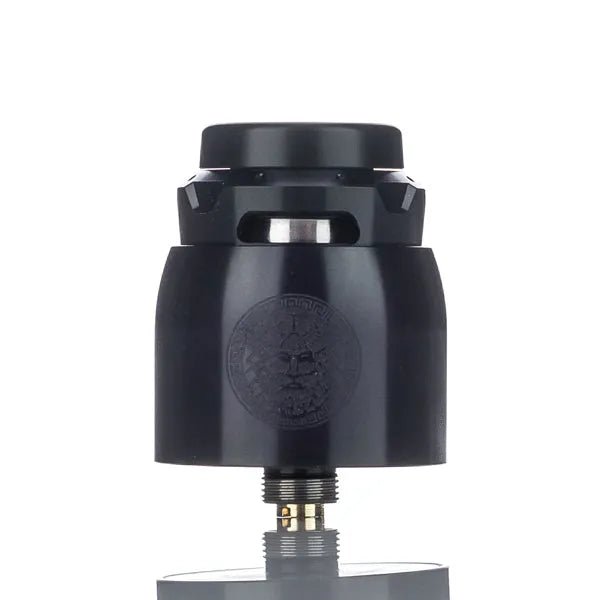

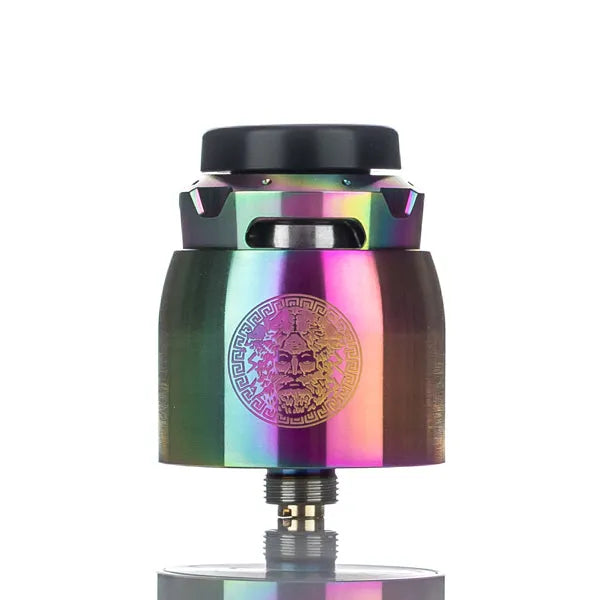

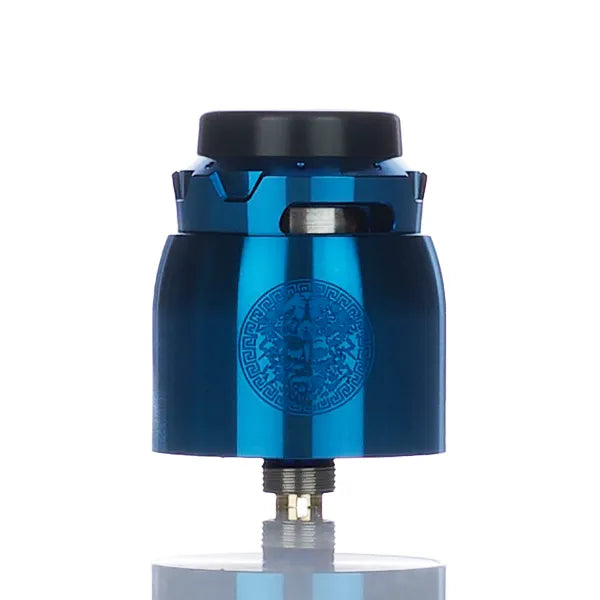

The GeekVape Z (Zeus) 25mm BF RDA is two post, dual coil, rebuildable drip atomizer with top airflow and bottom feeding capability. The Z RDA features a gold plated center pin, low profile 810 drip tip, and the Zeus logo engraved into two sides of the top cap.

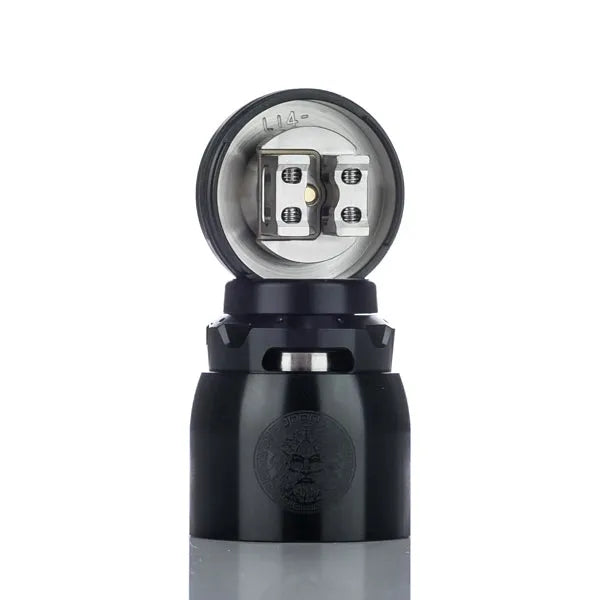

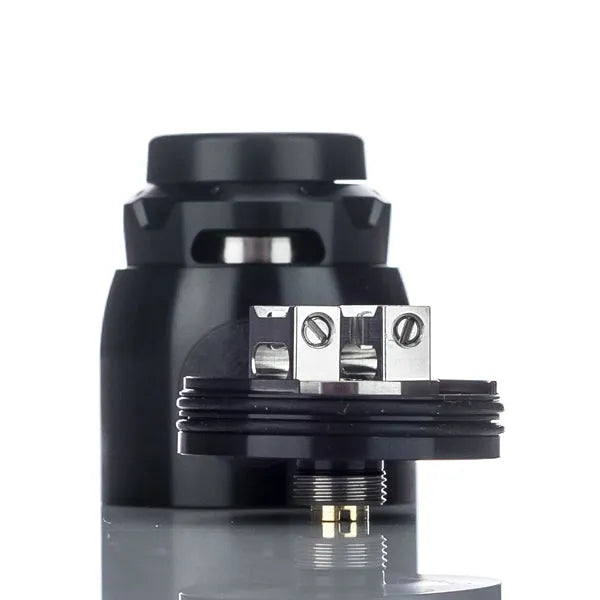

The Z RDA features a unique build deck which sits raised in the center like a floating island, and has two bridge shaped posts with two terminal per post. The posts have an oval cutout below the terminals to make trimming the coil lead excess easy, and side mounted terminal screws. The floating deck design leaves a nice channel around the deck for the cotton wick ends to be neatly tucked away.

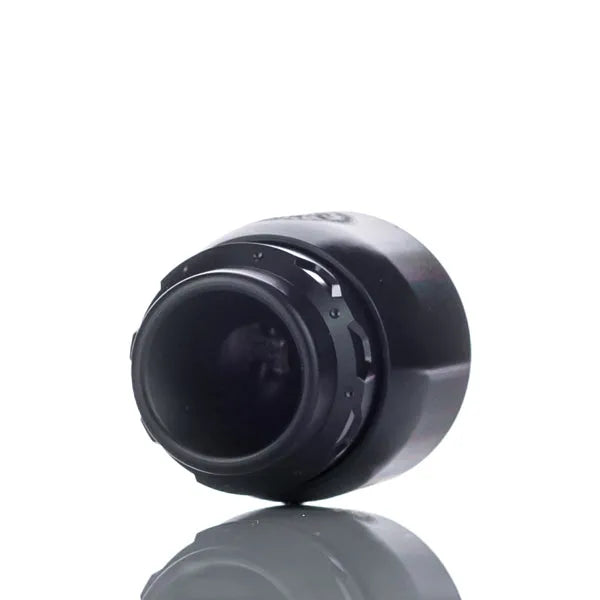

The Z RDA uses an advanced top airflow control system for superior airflow through the RDA. The crown shaped Airflow Control Ring allows the user to fine adjust the amount of air, and ensures the user that this RDA is the king of airflow. The air path travels down the inside of the cap and is recirculated around the face of the coil location. The top cap features two indexing points that match the indexing points on the base of the atomizer, ensuring the perfect airflow alignment every time.

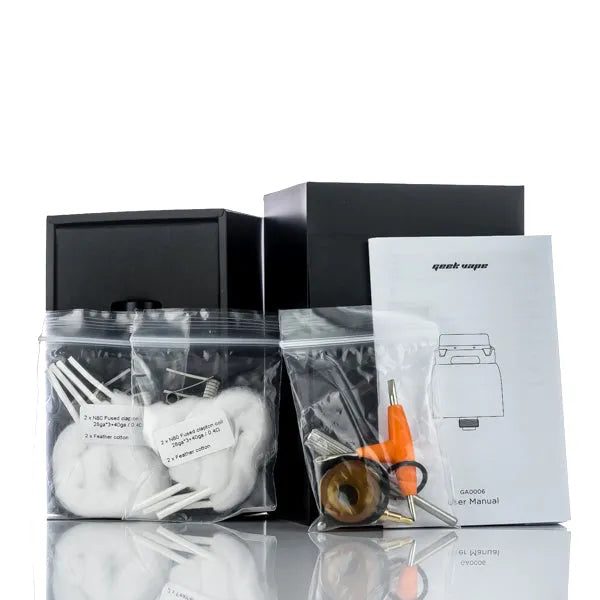

Product Includes:

• 1 x GeekVape Z RDA

• 1 x BF Center Pin

• 1 x Ultem 810 Drip Tip

• 1 x T-Tool

• 1 x 3mm Coil Rod

• 4 x N80 Fused Clapton Coil 0.4 ohm
• 4 x Cotton

• 1 x Spare Parts

• 1 x User Manual

Check out the GeekVape Z RDA infographic to better understand how the product works!

Product Specifications

• 25mm Diameter
• Top Terminal Two Post Build Deck
• Two Terminal Per Post
• Dual Coil Configurations
• 2mm Terminals
• Side Mounted Flathead Screws
• 4mm Deep Juice Well

• Double O-Ring Secured
• PEEK Insulator
• Top Airflow Control System
• 11mm by 2.5mm Each Airslot
• Inside Dome to Redirect Airflow

• Minimizes Leaking
• Fully Closeable
• Knurled Grip To Adjust Airflow With Ease
• 14mm Wide Bore 810 Drip Tip
• Ultem 810 Drip Tip Included

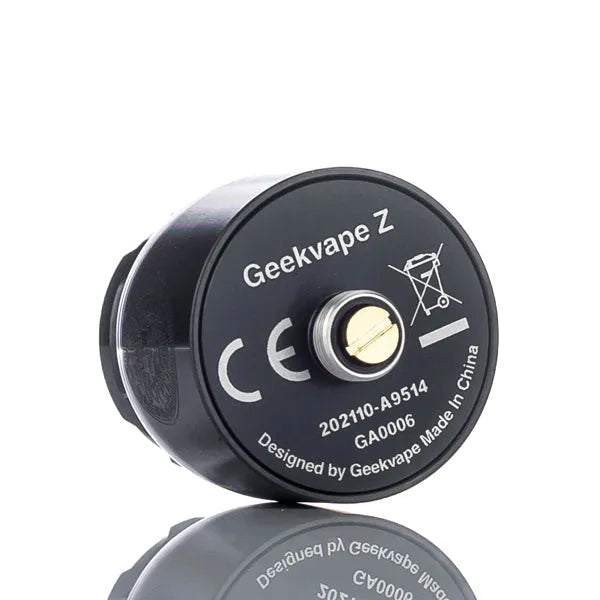

• Gold Plated Positive Pin
• Gold Plated Bottom Feed Pin

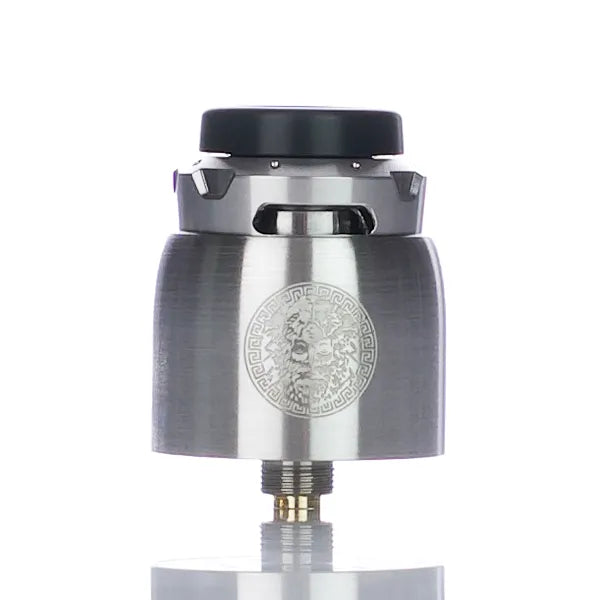

• 304 Stainless Steel Construction
